This article focuses on the surface treatment and coating processes for fasteners, providing an in-depth analysis of their functional requirements and offering specific selection guidance to help engineers and procurement professionals make more informed decisions.

Functional Analysis of Fastener Surface Treatments

Surface treatments for fasteners are not just for aesthetics; more importantly, they impart specific functional properties to meet diverse application environments and performance requirements. Key functions include:

Corrosion Protection: This is the primary objective. Metal fasteners (especially carbon steel) are prone to rust in humid, salt-spray, chemical, or other corrosive environments, leading to reduced strength, compromised appearance, and even functional failure. Surface treatment layers act as a physical barrier or provide electrochemical (sacrificial anode) protection to isolate corrosive media, significantly extending fastener lifespan.

Friction Control: The relationship between the torque applied during tightening and the resulting clamping force (preload) is significantly influenced by the coefficient of friction. Specific coatings (e.g., phosphate + oil, zinc flake coatings with integrated lubricant) can provide a stable and predictable coefficient of friction, ensuring consistent preload for the same applied torque, which is crucial for the reliability of critical joints.

Wear Resistance: In applications involving frequent assembly/disassembly or relative motion, fastener threads and heads can wear down. Certain hard coatings (e.g., carburizing, nitriding, or specific alloy platings) can increase surface hardness and enhance wear resistance.

Hydrogen Embrittlement Mitigation: High-strength fasteners (typically property class ≥ 10.9 or US Grade 8 and above) are susceptible to hydrogen absorption during acid pickling and electroplating processes, leading to delayed fracture (hydrogen embrittlement). Choosing processes with no risk of hydrogen embrittlement (e.g., mechanical plating, zinc flake coating) or ensuring adequate hydrogen relief baking after plating is critical for the safety of high-strength bolts.

Appearance & Identification: Surface treatments can provide different colors and gloss levels to meet product aesthetic requirements. Specific colors (e.g., certain passivation colors, organic coating colors) are sometimes used to differentiate fasteners of different specifications, materials, or purposes.

Conductivity/Insulation: Most metallic coatings maintain good electrical conductivity, suitable for applications requiring electrical connection (e.g., grounding). Conversely, some organic coatings or thick passivation films may offer some insulating properties.

Adhesion Improvement: Certain treatments (like phosphating) can provide a rough, porous surface that enhances the adhesion of subsequent paint or adhesive applications.

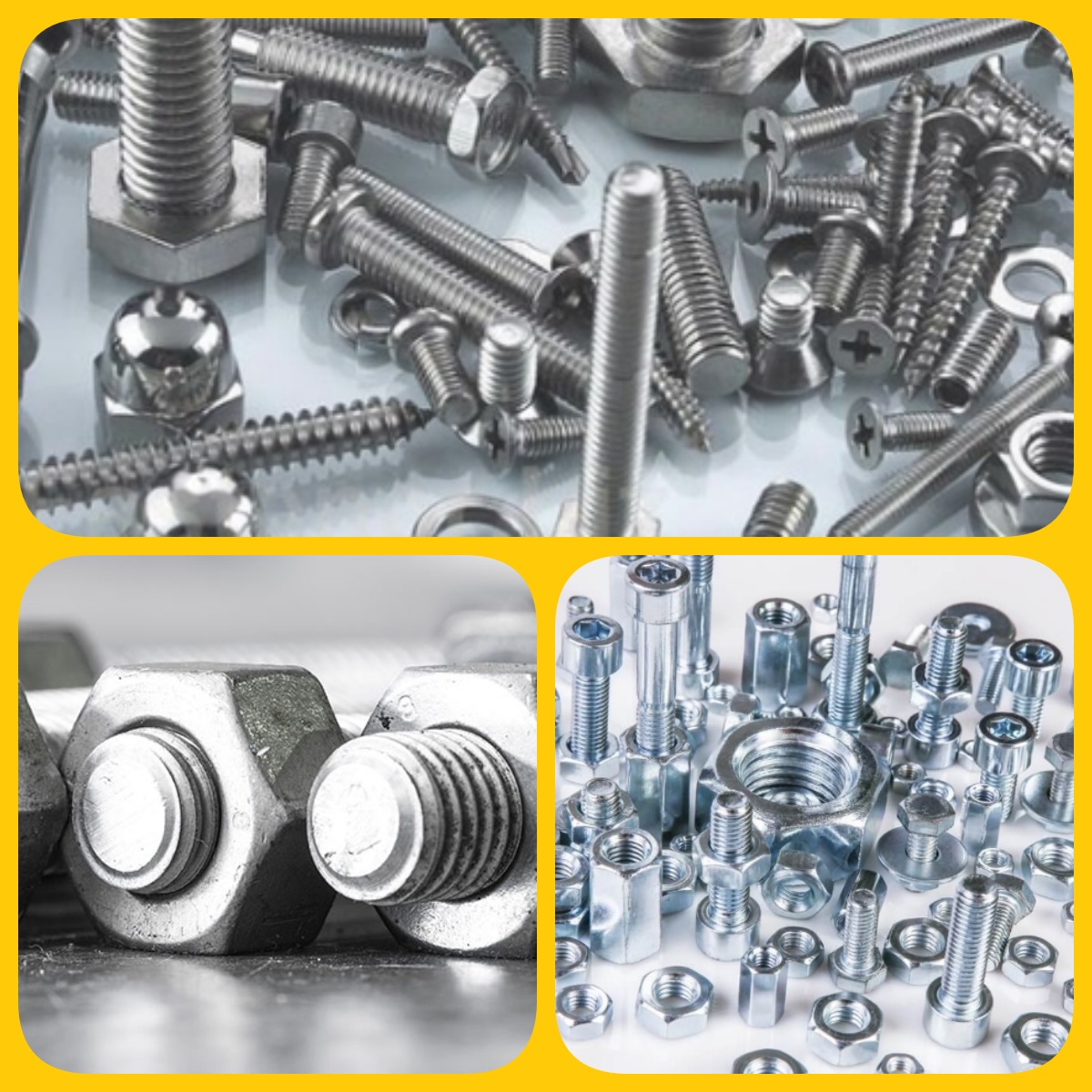

In-Depth Look at Common Fastener Surface Treatment/Coating Processes

Here are some mainstream fastener surface treatment processes and their characteristics:

Electro-galvanizing / Zinc Plating: Process: Deposition of a zinc layer onto the fastener surface via electrochemical methods. Usually followed by passivation (chromate or non-chromate) to improve corrosion resistance and appearance (common finishes include clear/blue, yellow iridescent, black, olive drab). Characteristics: Relatively low cost, uniform coating, good appearance, provides basic corrosion protection (sacrificial anode). Passivation layer significantly impacts final corrosion resistance. Risk of hydrogen embrittlement; hydrogen relief baking required for high-strength parts. Corrosion Resistance: Moderate, Neutral Salt Spray (NSS) test hours typically range from 24h to 200h+, depending on thickness and passivation type. Friction Coefficient: Relatively high and variable unless specific post-treatments (like sealants/lubricants) are applied. Applications: Indoor environments, general industrial use, automotive interiors, electronics, applications with low corrosion requirements.

Hot-Dip Galvanizing (HDG): Process: Immersing fasteners in molten zinc to form a thick layer comprising zinc-iron alloys and pure zinc. Characteristics: Very thick coating (typically > 40 μ m ), provides excellent long-term corrosion protection, especially for harsh outdoor environments. Surface is generally rougher than electroplating and may affect thread fit (often requires oversized tapped nuts or thread allowances). High-temperature process generally eliminates hydrogen embrittlement risk. Higher cost than zinc plating. Corrosion Resistance: Excellent, NSS hours often reach 500h to 1000h+. Friction Coefficient: High and variable. Applications: Outdoor structural steelwork, power transmission towers, highway guardrails, solar panel racking, heavy equipment, applications requiring long-life corrosion protection.

Mechanical Plating: Process: Cold-welding (impacting) zinc powder onto the fastener surface using glass beads or other impact media in a rotating barrel. Characteristics: Good coating thickness uniformity and adhesion. Key advantage: No risk of hydrogen embrittlement, making it ideal for high-strength fasteners. Corrosion resistance is similar to or slightly better than electroplated zinc of the same thickness. Corrosion Resistance: Moderate to good, depending on coating thickness. Friction Coefficient: Similar to electroplated zinc, can be modified with post-treatments. Applications: High-strength fasteners (e.g., Class 10.9/12.9 bolts), parts sensitive to hydrogen embrittlement, spring steel components.

Phosphating: Process: Immersing fasteners in a phosphate solution to form an insoluble phosphate conversion coating (commonly zinc phosphate or manganese phosphate) via chemical reaction. Usually requires subsequent oiling or waxing for improved rust prevention and lubrication. Characteristics: Low cost. The phosphate layer itself offers limited rust protection but provides an excellent base for oils, waxes, or paints. Manganese phosphate offers good wear resistance and anti-galling properties. Phosphating processes also carry some risk of hydrogen embrittlement (less than electroplating). Corrosion Resistance: Low (phosphate layer alone), relies on subsequent rust-preventive oil/wax. Friction Coefficient: Phosphate + oil can provide a low and stable coefficient of friction, often used where precise preload is required. Applications: As a base for oil sealing or painting, automotive engine components, joints requiring stable friction, cold forming lubrication.

Zinc Flake Coating (Non-electrolytically Applied Zinc Flake): Process: Applying a paint containing zinc and/or aluminum flakes to the fastener surface via dip-spin or spray methods, followed by curing (baking). Typical brands include Dacromet®, Geomet®, Zintek®, Magni®. Characteristics: Provides very high corrosion protection (sacrificial + barrier + self-healing effects). Achieves high resistance with thin layers (typically 8-15 μ m ). No risk of hydrogen embrittlement, ideal for high-strength fasteners. Often includes integrated lubricants for stable and controlled friction coefficients. Colors are typically silver-gray or black. Corrosion Resistance: Very high, NSS hours commonly range from 600h to 1500h+. Friction Coefficient: Can be precisely controlled within specific ranges (e.g., 0.09 − 0.15 ) as required. Applications: Automotive industry (chassis, structural parts, braking systems), wind energy, construction machinery, high-strength fasteners, applications demanding high corrosion resistance, freedom from hydrogen embrittlement, and precise torque control.

Alloy Plating (e.g., Zinc-Nickel): Process: Co-depositing two or more metals electrochemically, such as zinc and nickel (typically 12-15% Ni). Also requires passivation. Characteristics: Offers higher corrosion resistance and better heat resistance than pure zinc plating. Lower galvanic corrosion potential when in contact with aluminum alloys. Good appearance. Still carries hydrogen embrittlement risk; requires hydrogen relief baking. Higher cost than pure zinc plating. Corrosion Resistance: High, NSS hours typically range from 720h to 1000h+. Friction Coefficient: Depends on passivation and post-treatment. Applications: Automotive (especially under-hood, contact with aluminum parts), aerospace, applications requiring high-temperature corrosion resistance.

Organic Coatings (e.g., Epoxy, PTFE): Process: Spraying or dip-coating organic resins (like epoxy, polyurethane, PTFE) and curing them. Characteristics: Provide excellent chemical resistance and corrosion protection (barrier effect). Available in various colors. PTFE coatings offer very low friction and non-stick properties. Thicker coatings might affect dimensional fit. Corrosion Resistance: Very high, depending on coating type and thickness. Friction Coefficient: Very low for PTFE coatings. Varies for other types. Applications: Chemical processing equipment, marine engineering, applications requiring specific colors, low friction, or chemical resistance.

Passivation for Stainless Steel: Process: Not a "coating," but a chemical treatment (typically using nitric or citric acid) to remove free iron and other contaminants from the stainless steel surface and promote the formation of a thicker, more uniform, and more inert chromium-rich oxide layer (passive film). Characteristics: Enhances the inherent corrosion resistance of stainless steel, maintaining its metallic appearance. Simple and relatively low-cost process. Corrosion Resistance: Improves the natural corrosion resistance of stainless steel. Friction Coefficient: Relatively high. Applications: All types of stainless steel fasteners, especially after machining or for applications requiring higher cleanliness and corrosion resistance.

Specific Selection Guidance for Fastener Surface Treatments

Selecting the appropriate surface treatment requires balancing the application environment, performance requirements, cost, and regulations:

Basic Indoor / Low Corrosion Environment: Requirements: Basic rust prevention, clean appearance. Recommendations: Zinc plating (clear/blue or yellow iridescent, thickness ≥ 5 μ m ) + suitable passivation. Phosphate + rust-preventive oil if cost-sensitive.

General Outdoor / Industrial Environment (Moderate Corrosion): Requirements: Better weather resistance and rust prevention. Recommendations: Thicker zinc plating ( ≥ 8 − 12 μ m ) + high-performance passivation (e.g., thick-layer passivation), mechanical plating, or basic-level zinc flake coating.

Harsh Outdoor / Marine / High Humidity / Chemical Environment (High Corrosion): Requirements: Long-term, reliable corrosion protection.

Recommendations: Hot-dip galvanizing (HDG) (suitable where thread fit tolerance is less critical), high-performance zinc flake coating (Geomet®, Zintek®, Magni®, etc.), zinc-nickel alloy plating, or select stainless steel fasteners directly (passivation recommended). Organic coatings (e.g., epoxy) can also be considered.

High-Strength Fasteners (Property Class ≥ 10.9 ): Requirements: Avoid hydrogen embrittlement risk while meeting corrosion protection needs.

Recommendations: Prioritize processes with no hydrogen embrittlement risk: Zinc flake coating, mechanical plating. If using electroplating (zinc or zinc-nickel), ensure thorough and effective hydrogen relief baking according to standards, with strict process control and validation. HDG generally poses no HE risk but be mindful of thread fit issues.

Requires Precise Torque Control / Stable Friction Coefficient: Requirements: High consistency in preload. Recommendations: Phosphate + oil/wax, zinc flake coatings with integrated lubricants, zinc/zinc-nickel plating with lubricating sealants. Always consult supplier data for the coefficient of friction range (usually specified under defined test conditions).

High-Temperature Environment (e.g., Engine Compartment): Requirements: Coating stability at elevated temperatures. Recommendations: Zinc-nickel alloy plating, certain specialized zinc flake coatings, manganese phosphating, or uncoated heat-resistant steel/stainless steel. Standard zinc plating performance degrades at higher temperatures (e.g., > 15 0 ∘ C ).

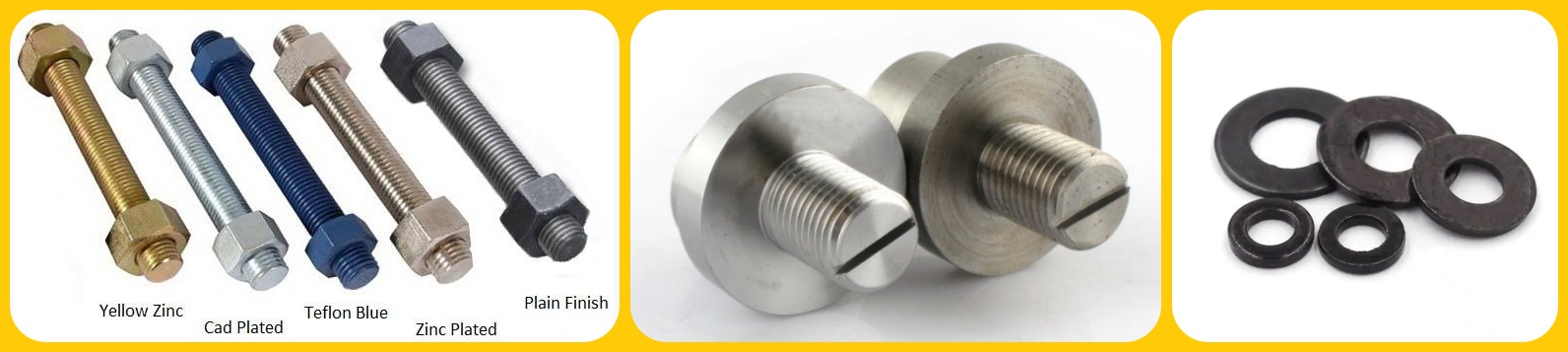

Appearance Requirements: Requirements: Specific color or luster. Recommendations: Zinc plating + various passivation colors (clear/blue, yellow, black), black oxide, zinc flake coating (silver-gray/black), organic coatings (various colors). Passivated stainless steel for metallic look.

Requires Electrical Conductivity (e.g., Grounding): Requirements: Low contact resistance. Recommendations: Most metallic coatings (zinc, zinc-nickel) offer good conductivity, but note that passivation layers might introduce slight insulation. Avoid thick organic coatings. Ensure clean contact surfaces.
Contact with Dissimilar Metals (e.g., Aluminum Alloys): Requirements: Minimize galvanic corrosion risk. Recommendations: Zinc-nickel alloy plating (potential closer to aluminum), zinc flake coatings (those containing aluminum offer benefits), or use insulating washers/coatings for isolation. Avoid direct contact between plain steel/copper and aluminum.

Key Surface Treatment Properties & Considerations

Corrosion Resistance: Definition: Ability to resist environmental degradation, commonly measured by Neutral Salt Spray (NSS) test hours (h) per standards like ISO 9227. E.g., NSS 240h means no specified level of corrosion (usually red rust) appears within 240 hours in a standard salt spray chamber. Selection: Choose appropriate NSS hours based on the service environment's corrosivity category. General indoor >72h, humid/general outdoor >240h, harsh environments >600h or even 1000h+.

Coating/Deposit Thickness: Definition: The thickness of the surface treatment layer, usually in micrometers ( μ m ). Impact: Directly affects corrosion resistance, cost, and fit (especially for threaded fasteners). Excessive thickness can cause assembly issues. Standards like ISO 4042 specify requirements.

Coefficient of Friction (CoF / μ ): Definition: Parameter describing the friction between threads and under the head during tightening. Impact: Determines the clamping force (preload) achieved for a given tightening torque ( T = K ⋅ F ⋅ d , where K is closely related to CoF). A stable and controlled CoF is vital for joint reliability. Selection: For critical joints, select coatings providing stable CoF (e.g., zinc flake, phosphate+oil). Refer to or test the CoF range (typically 0.08-0.20) based on design requirements.

Hydrogen Embrittlement (HE) Risk: Definition: High-strength steel absorbs hydrogen during manufacturing or plating, reducing ductility and potentially leading to unexpected delayed brittle fracture under stress. Selection: For property class ≥ 10.9 (or hardness ≥ 320 H V ), prioritize processes with no HE risk (mechanical plating, zinc flake) or ensure adequate post-plating baking per standards (e.g., ISO 4042).

Adhesion & Ductility: Definition: How well the coating binds to the base metal and its ability to resist cracking or peeling during stress/deformation. Selection: The coating must withstand installation stresses without flaking. Assessed via tests like bending, impact, or cross-hatch adhesion tests.

Temperature Resistance: Definition: The maximum operating temperature at which the coating maintains its properties (primarily corrosion protection). Selection: Choose based on the maximum service temperature. Note that some coatings (like standard zinc plating passivation) degrade at elevated temperatures.

Cost: Definition: Relative expense of different surface treatment processes. Selection: Balance cost with performance requirements. Generally, zinc plating/phosphating are lower cost, while HDG/zinc flake/zinc-nickel are higher cost.

Environmental Regulations: Definition: Rules like EU RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals 1 ) limit the use of substances like hexavalent chromium (Cr6+) and cadmium (Cd).
